2021 IBETAMAC 3200x63 T

2021 IBETAMAC 3200x63 T

€20,000 (EUR)

+i.v.a

Location:Albano Laziale, Italy

Description

Very economical torsion bar series folding machines with great simplicity of use, but with great bending precision. They have an automatic positioner with 2 X + Y axes, with easy-to-use memories, blade attachment and Amada Schiavi Promecam v type prism with fractional punch and 60 mm die with 4 V, 835 and 415 mm parts. With CE certificate and instruction manual, machines that do not exceed 30 mm / s and therefore do not belong to annex V of the European machinery directive. Not exceeding the speed of descent 10 mm / s do not need laser protections.

Specifications

ManufacturerIBETAMAC
Model3200x63 T
Year2021
ConditionNew
Folding length (mm)3200
Bending force (ton)63
Distance between studs (mm)2550
Piston stroke (mm)160
X axis travel (mm)550
Motor power (Kw)5,5
Weight (Kg)5000
Measurements (mm)4000x2350x1500

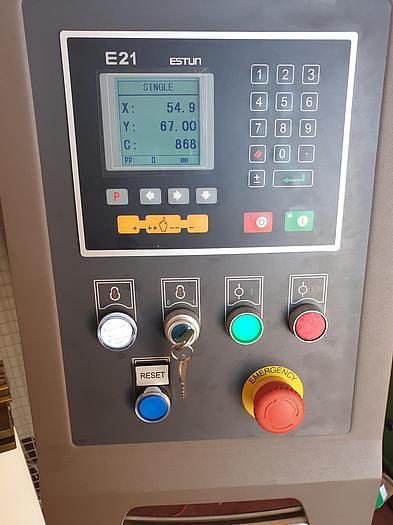

2 axis programmerE-21
Blades and prismyes
