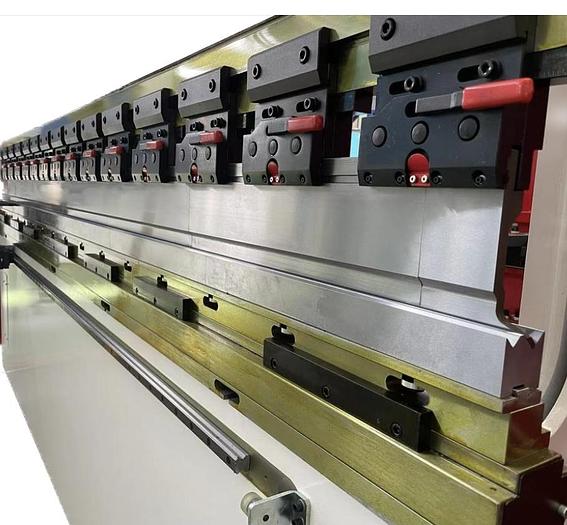

2023 IBETAMAC 100T2500
No longer available
2023 IBETAMAC 100T2500
Location:Albano Laziale, Italy
Description
STANDARD CONFIGURATIONS:

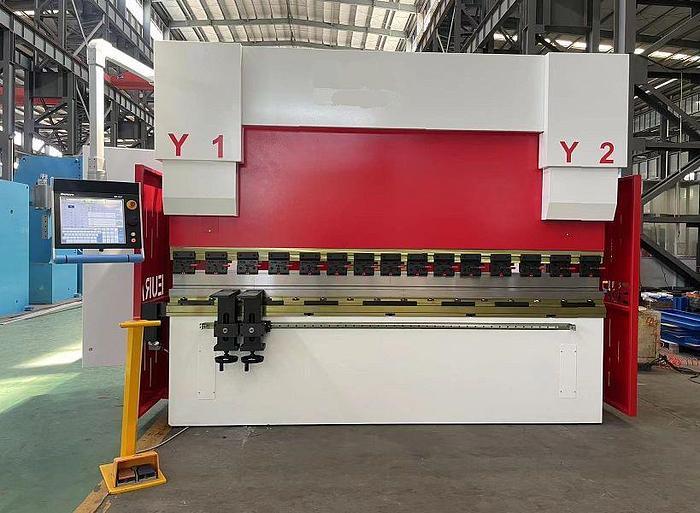

- Y1, Y2, X and R axes control and CNC controlled motorized compensation table (only for 100T)
- FULL TOUCH SCREEN controller ESA S 630

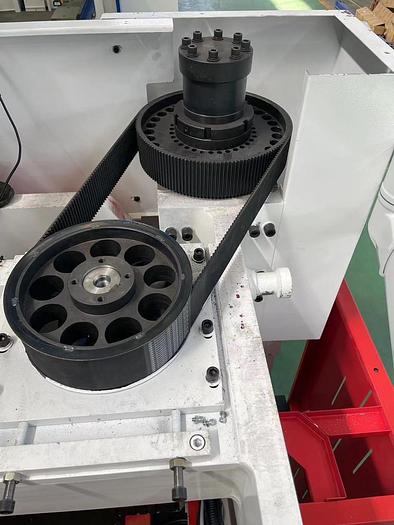

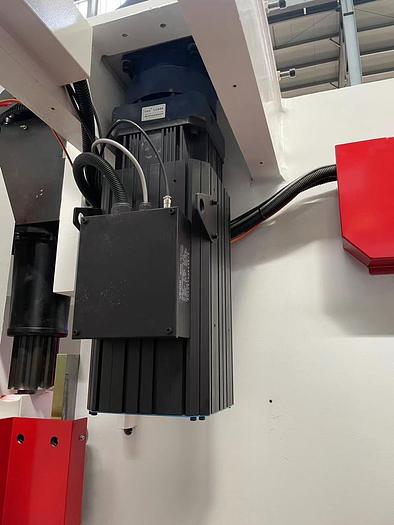

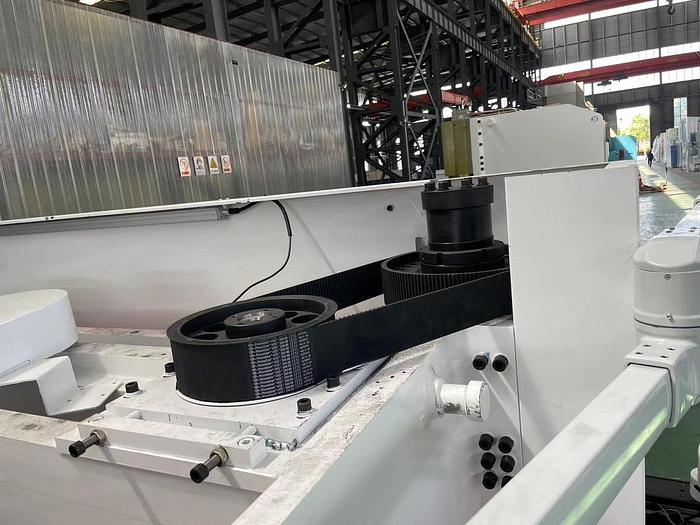

- main servo system for Y1 and Y2 axes
- CNC controlled servo motor and drive for X and R backgauge
- die sets with a sectioned length of 835 mm
- 4 V-shaped slots of 60x60 mm with a sectioned length of 835 mm

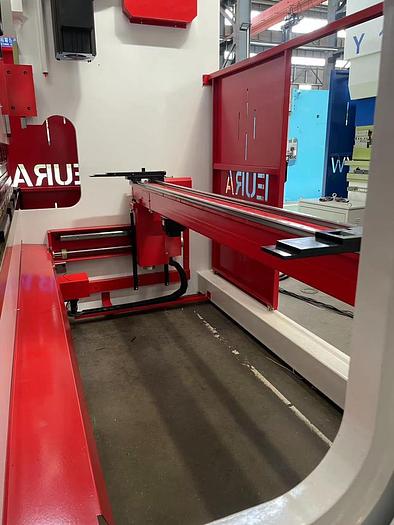

- sliding movable front support arm with linear guide, height adjustable support
- side and rear gate interlock protection
- removable pedal with emergency stop buttons
Specifications
| Manufacturer | IBETAMAC |
| Model | 100T2500 |
| Year | 2023 |
| Condition | New |
| Bending power | 100 Ton |
| Bending length (mm) | 2500 |
| X-axis backgauge travel (mm) | 600 |
| R axis travel (mm) | 200 |
| Distance between internal uprights (mm) | 2000 |
| Y1 and Y2 axis travel (mm) | 200 |
| Maximum opening between upright and lower board (mm) | 460 |
| Promecam type die holder table width (mm) | 60 |
| Approach speed (mm/sec) | 150 |
| Ascent rate (mm/sec) | 150 |
| Working speed (mm/sec) | 20 |
| Installed power (kw) | 2x15kw |
| Weight kg) | 7000 |
| Overall dimensions(LxWxH) | 3200x1900x2800mm |
