2022 IBETAMAC TR 2B I INT VIS
No longer available
2022 IBETAMAC TR 2B I INT VIS
€28,331 +iva
Albano Laziale, Italy
Description
Double Miter Saw - 370 mm Blade - 4 HP Motor. Complete with digital position display
DESCRIPTION

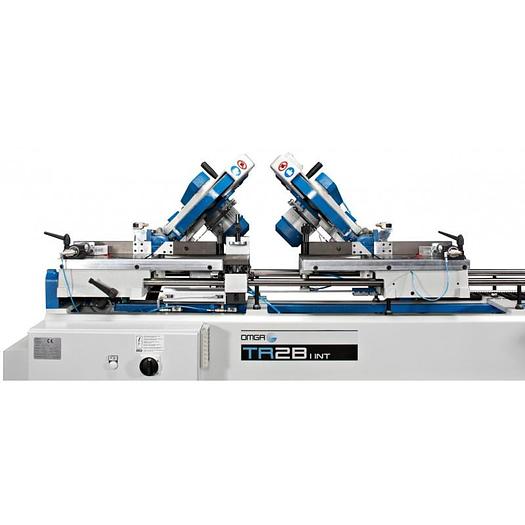

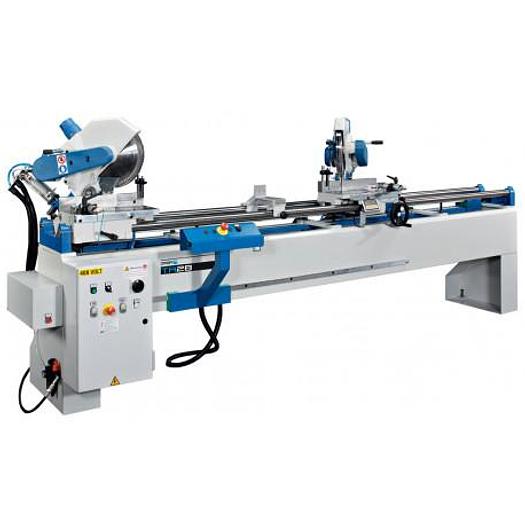

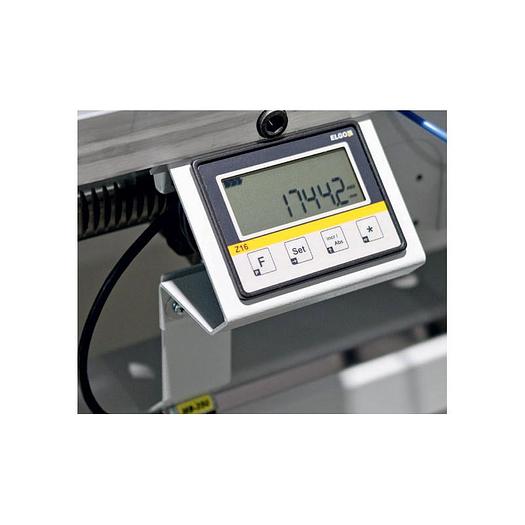

Double Miter Saw. One fixed head on the left and one movable on the right. Manual positioning with digital display of the position. The moving head runs on ball bearings. Vertical and horizontal pneumatic pressers (CE version) guarantee perfect sealing of the piece during cutting. Both heads are tiltable on the vertical axis. Self-centering locks for positioning the main corners. Various accessories are available such as various cutting lengths and brackets for short pieces. Also available in the version for aluminum cutting with oleo-pneumatic descent and blade lubrication.
Specifications
| Manufacturer | IBETAMAC |
| Model | TR 2B I INT VIS |
| Year | 2022 |
| Condition | New |
| MAXIMUM CUTTING LENGTH (mm) | 2800 |
| MINIMUM CUTTING LENGTH (mm) | 600 |
| MINIMUM CUTTING LENGTH at 45 ° | 600 mm |
| MAXIMUM WIDTH AT 90 ° | 175 mm |
| MAXIMUM WIDTH AT 45 ° | 115 mm |
| MAXIMUM THICKNESS | 120 mm |
| MOTOR POWER (Kw) | 2 x 2.9 Kw |
| MAXIMUM INCLINED CUT WIDTH (mm) | 175 |
| BLADE HOLE DIAMETER (mm) | 30 |
| BLADE DIAMETER (mm) | 370 |
| V. ROTATION | 3000 rpm |
| SUCTION PORT DIAMETER | 2 x 80 mm |
| GROSS WEIGHT (kg) | 800 |
| PACKAGING DIMENSIONS (mm) | 3700x1200x1600 |
| Maximum width at 90 ° | 173 mm |
| Maximum width at 45 ° | 105 mm |
| Max thickness (mm) | 110 |
| Maximum thickness at 45 ° | N/A |
| Motor power (kw) | 2,2 |
| Maximum inclined cutting width | N/A |
| Blade hole diameter | 30 mm |
| Blade diameter | 350 mm |
| Rotation speed | 3000 rpm |
| Suction mouth diameter | 80 mm |
| Table size | 580x600 mm |
| Gross weight (kg) | 106 |
| Packaging dimensions | 580x600x765 mm |
