2023 FEMI N 257 DA DG
No longer available
2023 FEMI N 257 DA DG
€6,208 (EUR)
+ iva
Location:Albano Laziale, Italy
Description

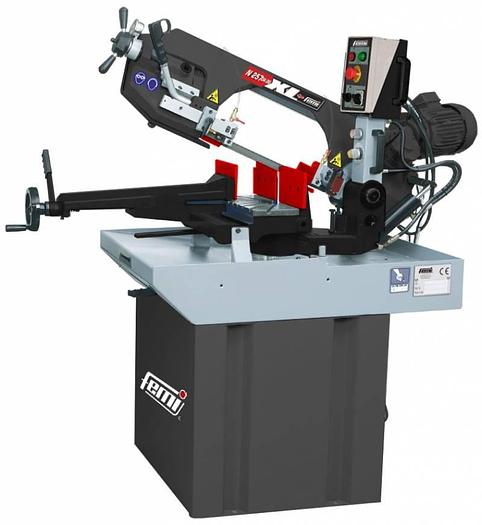

Band saw with translating vice, three-phase, with automatic descent.
TECHNICAL FEATURES:
- Powerful 2-speed three-phase induction motor, oil lubricated gearbox.
- Arm, vice and swivel group in cast iron.
- Sliding steel blade guide with bearings.
- Translating vice with quick locking device.
- Lubrication pump with aluminum body.
- Large handwheel to facilitate blade tensioning.
- Pressure gauge indicating the tension level of the blade (600-1000 kg/cm2)
STANDARD EQUIPMENT:
- Base in assembly kit.
- Tank for lubricating oil.
- Lubrication pump.
- Bar stop rods for series cuts.
- Service keys.
- Brush for cleaning the blade.
- Hydraulic cylinder with adjustable flow.
Specifications
| Manufacturer | FEMI |
| Model | N 257 DA DG |
| Year | 2023 |
| Condition | New |
| Arm descent | Automatic with hydraulic control |
| Blade development (mm) | 2480x27x0.9 |
| Motor power (watts) | 750/1100 |
| Power supply (Volt-Hz) | 400-50 |
| Weight kg) | 235 |
| Blade speed (mt/min) | 45/90 2 speed |
| Toothing Z/1" | 6/10 |
| Packing size (mm) | 1385x580x890 |
| Lubrication | Yes |
